Can activated carbon be used to treat dredged sediments?

U.S. Army Corps of Engineers
Published Nov. 2, 2015

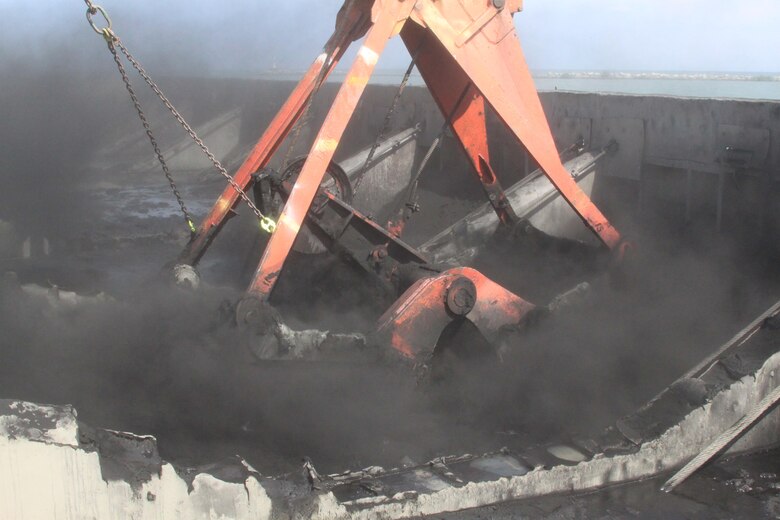

A clamshell is used to thoroughly mix activated carbon and dredged sediments in a scow, before it is placed in the open-lake.

A clamshell is used to thoroughly mix activated carbon and dredged sediments in a scow, before it is placed in the open-lake.

Super sacks of powdered and granular activated carbon are added to a scow of dredged sediment before mixing with a clamshell bucket.

Super sacks of powdered and granular activated carbon are added to a scow of dredged sediment before mixing with a clamshell bucket.

The mission of dredging harbors and connecting federal navigation channels along Lake Erie and Lake Ontario is the responsibility of the U.S. Army Corps of Engineers (USACE), Buffalo District and is vital to the functionality of the Great Lakes Navigation System (GLNS) and the overall U.S. economy.



While dredging has been taking place for hundreds of years, the management of dredged sediment is among the top Great Lakes priorities and challenges.  Adding to the challenge is that portions of dredged sediments contain contamination that can have a negative impact on the aquatic environment if not managed properly.  There are a number of potential sources of sediment contamination including: municipal and industrial discharges, urban and agricultural runoff, sewer overflows, and atmospheric deposition.



Using conventional dredging equipment, the USACE Buffalo District along with the U.S. Army Engineer Research and Development Center (ERDC) have started the first of its kind large scale demonstration of treating dredged sediment, from Ashtabula Harbor, Ohio, with activated carbon to determine if bioaccumulation can be reduced in the bioactive zone of the 50-foot-deep open-lake placement site.



“I think it is important to note here that the sediments that we are treating are suitable for open-lake placement and the amount of contamination that we are talking about is minimal,” said Mike Asquith, USACE Buffalo District dredging program manager.  “The objective of the study is to evaluate the performance of activated carbon under field conditions to determine if the technology can be utilized in situations or harbors where sediment contamination is a concern.”



“Activated carbon has been used as a purification agent by many industries to treat water, air, and alcohol to name a few,” said Paul Schroeder, ERDC sediment management team leader.  “It is considered ‘activated’ when it goes through a process in which the carbon is made more porous, increasing its surface area, and preparing it to accept contaminants.”



In a process right from the text book of a high school chemistry class, when the contamination in the sediment comes in contact with the activated carbon the two bond together.  The contaminants are so strongly bonded to the activated carbon they cannot be bioaccumulated by aquatic organisms that come into contact with the sediment.



The most biologically active zone in lake sediment is at the surface of the lake bottom.  Knowing this, a part of the study is to examine how treated sediment can be used to cap previously placed or existing sediments on the bottom of the lake by placing a 2-5 cm layer of treated sediment to provide a protective bioactive zone.



During the 2015 dredging season a total of 7,200 cubic yards was placed in the open-lake area as part of the study, of which 1,200 cubic yards of sediment was treated with two types of activated carbon, powdered and granular.  Two different types were used so that the study team could see how well each mixed with sediment, how each type acted when it was dropped from to scow to the 50-foot-deep placement site, and to measure how quickly the two different types adsorbed contaminants.



“We found that we could effectively mix both types of activated carbon into dredged sediment while it is contained in the placement scow just with using a clam shell bucket,” said Asquith.

“Samples were taken at the placement site, after the sediment settled, and the results were positive.”



“We found well blended granular activated carbon, and smears of powdered activated carbon in bioactive zone,” said Schroeder.  “This shows that both types of activated carbon will not be stripped from the mixture during placement in the open-lake.”



During the 2016 season the team will return to the open-lake placement site, take more samples from the bioactive zone to test for the reduction of the bioavailability of contaminants in the sediments.



“I am proud to proclaim that the USACE stands for public safety and environmental stewardship and we share in the public’s concern for the well-being of the Great Lakes,” said Brig. Gen Richard G. Kaiser, USACE Great Lakes and Ohio River Division commander.  “We will continue to work hard at improving the condition and reliability of the GLNS – it is vital for our continued economic success and vital for the regional and national economies.”
